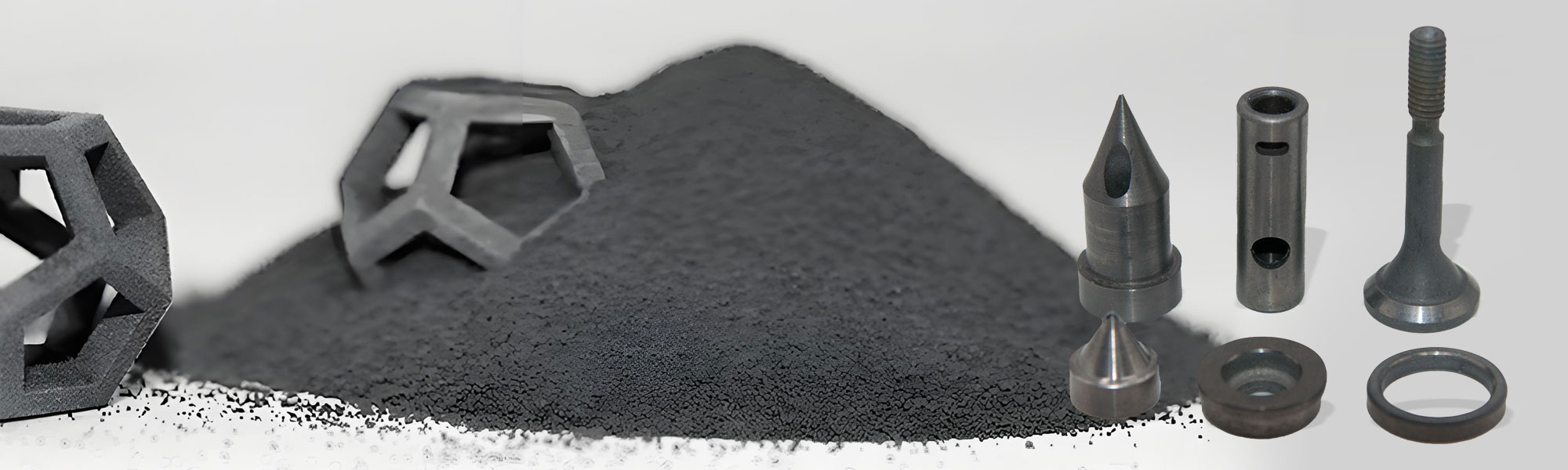

Ningbo Precision Tech produces metal injection molding (MIM) cemented carbide (WC-Co) components — threaded connectors, spray nozzles and cutting-tool preforms — at HRA 85–92 hardness, forming complex carbide geometries with internal threads and undercuts that pressing and sintering cannot economically achieve.
Cemented carbide components represent one of the most technically challenging applications of Metal Injection Molding, requiring the forming of ultra-hard WC-Co (tungsten carbide-cobalt) powder mixtures into precision geometries that would be prohibitively expensivetomachine by conventional methods. Ningbo Precision Tech has developed specialized MIM capabilities for carbide parts, producing wear-resistant components with hardness rangingfromHRA85to92. Our carbide MIM products include precision threaded connectors, black steel spray nozzles for abrasive high-pressure applications, industrial cutting tool preforms, and custom wear parts for mining and manufacturing equipment. The MIM process enables the production of complex carbide geometries—including internal threads, undercuts, and thin-walled sections—that cannot be economically achieved through pressing and sintering alone. By controlling powder loading, binder formulation, and sintering parameters, we achieve consistent density distribution and minimize distortion in finished carbide components. Our MIM carbide parts deliver the extreme wear resistance and compressive strength of cemented carbide combined with the design freedom of injection molding, providingacost-effective alternativetoground carbide components for demanding industrial applications worldwide.
Metal injection molding of tungsten carbide-cobalt (WC-Co) powder into complex, ultra-hard near-net-shape parts.
HRA 85-92.
Internal threads, undercuts and thin-walled sections that pressing and sintering alone cannot produce economically.
MIM delivers the wear resistance of cemented carbide with injection-molding design freedom at lower cost.
MIM Cemented Carbide Parts Manufacturer | WC-Co Precision Components for IndustryMIM cemented carbide parts are WC-Co (tungsten carbide-cobalt) precision components formed by metal injection molding, enabling complex features like undercuts, cross-holes, and internal threads impossible with press-and-sinter. MIM suits cemented carbide because it molds intricate wear-resistant geometries near-net shape, cutting grinding costs 40-60%. Key specifications
What Is Cemented Carbide?Cemented carbide is a composite material engineered for one job above all others: resisting wear. It consists of micron-scale tungsten carbide (WC) particles — the hardest metallic carbide in commercial use — embedded in a ductile metallic binder, typically cobalt (Co), nickel (Ni), or nickel-chromium (NiCr). The WC grains provide hardness (HRA 85–92, on par with sapphire), while the binder phase supplies fracture toughness — preventing the catastrophic brittle failure that plagues pure ceramics. The result is a material that can cut hardened steel, survive abrasive slurries for years, and maintain dimensional precision through conditions that would destroy tool steel in hours. Think of cemented carbide as concrete, but at the microscopic scale: the WC "gravel" takes the load and resists wear, the binder "cement" holds it together and absorbs shock. Adjust the grain size and binder fraction, and you tune the material from ultra-hard (for fine finishing tools) to ultra-tough (for rock drilling). |
|
|
|
MIM Carbide Threaded Components Manufacturer | WC-Co High-Strength Industrial ConnectorsMIM carbide threaded components are precision threads molded from cemented tungsten carbide (WC-Co), combining extreme hardness with high strength. Metal injection molding suits them because it molds complex external and internal thread forms directly in the green state, eliminating costly diamond grinding and enabling geometries press-and-sinter carbide cannot produce. Key specifications
What Are Carbide Threads?Carbide threads are precision-threaded components manufactured from cemented carbide — a composite of tungsten carbide (WC) particles embedded in a metallic binder matrix, typically cobalt (Co). The thread may be external (male screw), internal (female threaded insert), or both, and the component often integrates a hex head, flange, shoulder, or locating feature in a single piece. These threaded fasteners and connectors operate where standard steel threads fail: abrasive slurry valves, high-temperature furnace fixturing, chemical processing couplings, downhole drilling tools, and high-cycle industrial automation where thread galling and wear are the primary failure modes. Traditional threaded components rely on the bulk strength of the material — but in cemented carbide, the story is different. The WC grains at the thread flank surface provide extreme hardness against galling and abrasive wear; the cobalt binder underneath absorbs cyclic loading without brittle fracture. It is a composite designed for the thread root — the highest stress concentration point in any threaded connection. |
MIM Black Steel Carbide Nozzle Manufacturer | WC-Co Spray & Cutting NozzlesA black steel carbide nozzle is a cemented tungsten carbide (WC-Co) wear component with a sintered dark finish, used in waterjet, spray, and blasting systems. MIM suits it because it forms complex tapered bores, threads, and stepped orifices in one shot while retaining carbide's extreme hardness. Key specifications
What Is a Black Steel Carbide Nozzle?A black steel nozzle is a high-performance wear component manufactured from cemented carbide — a composite of tungsten carbide (WC) particles bonded in a cobalt (Co) matrix. The "black" appearance comes from the carbide surface finish after sintering, and the term distinguishes these industrial-grade nozzles from standard stainless steel or ceramic alternatives. These nozzles serve as the critical orifice in high-pressure jetting systems, abrasive waterjet cutters, spray drying equipment, sandblasting guns, and fuel injection assemblies. Every drop of fluid, every abrasive particle, every high-velocity stream passes through the nozzle bore — which means the nozzle takes the full brunt of erosive wear. When the nozzle wears out, the entire system degrades: spray patterns widen, cutting precision drops, fuel atomization suffers, and maintenance downtime spikes. This is why material choice matters more than geometry — and why cemented carbide has become the gold standard for demanding nozzle applications. |
|
|
|
Cemented Carbide MIM Parts Manufacturer | WC-Co Precision ComponentsCemented carbide MIM parts are WC-Co composites (tungsten carbide bonded with cobalt or nickel) formed by powder injection molding. MIM suits them because it produces complex 3D geometries, uniform density, and 90-95% material utilization, unlike press-and-sinter which is limited to simple prismatic shapes. Key specifications
What Is Cemented Carbide?Cemented carbide is a composite material in which micron-sized tungsten carbide (WC) particles are bonded together by a metallic binder — typically cobalt (Co), though nickel (Ni) is used for corrosion-critical applications. The result is a material that combines the extreme hardness of tungsten carbide (comparable to sapphire) with the toughness of a metal matrix. Think of it as "steel on steroids" — and then some. Where tool steel tops out around HRC 65, cemented carbide starts at HRA 85 (roughly equivalent to HRC 70) and goes up from there. It's the reason modern CNC tooling can cut through hardened steel like butter, why mining drill bits survive thousands of meters through solid rock, and why industrial nozzles don't wash out after weeks of abrasive slurry blasting. At Precision-mim, we manufacture cemented carbide components through powder injection molding (PIM/CIM) — achieving the complex geometries that traditional press-and-sinter cannot, while delivering the hardness and wear resistance that only tungsten carbide can provide. |
